Product Details

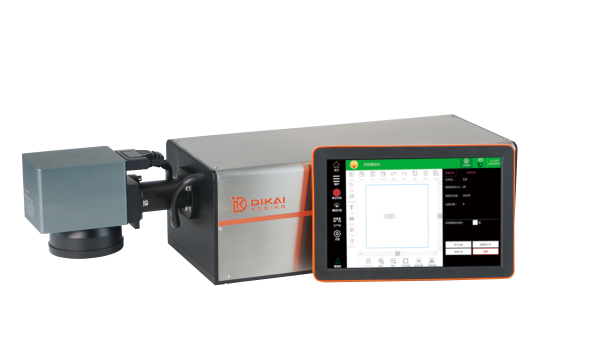

DLFe Fiber Laser Printer

DLF Fiber laser printer is a compact size, lower maintenance, no consumables coding system and it provides permanent & high quality codings. The laser is using intelligent vector control algorithm, marking speed greatly improved. It can be commonly used in food, cosmetics and other industries to print high contrast and permanently message & logo on hard plastic, metal and other materials. The identification will be cleaner than CO2 laser marking on the non -metal applications. It is very suitable for the mark on films of flexiable packaging.

Product case

Product features

Permanent indentification

Almost unlimited font, graphics and bar code applications.

Permanent identification, reliable anti-counterfeiting string selection.

Compact independent design, can be better integerated into the existing production line.

User friendly, low maintenance, no consumables

innovative interactive way is easy to learn understand, more convenient and fast operation.

High efficiency cooling design to achieve low maintenance and high life.

MTBF up to 100,000 hours. No consumbale, saving the use cost.

High speed, high quality, high reliability

Faster marking speed, up to 1000CPS. New intelligent control algorithm, high quality scratching technology.

Enhanced anti-EMC design, can ensure stable operation in harsh environment.

24 hours working.

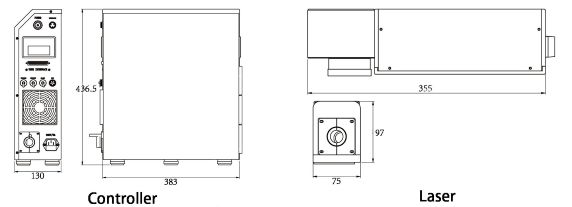

Machine dimension drawing

Product parameters

Model	DLF200e	DLF300e
Laser Type	Adjustable pulsed fiber laser，λ=1064nm，MTBF 100,000 hours
Laser Power	20W		30W
Characteristic
Scan Speed	≤8000mm/s		≤8000mm/s
Production Speed	120m/min		200m/min
Lines	No limited within markin area
Character Height	0.10mm - no limited within marking area
Font	Single/Double font, Dot-matrix font
Bar Code	Code39/Code25/EAN-13/Code128, etc
QR Code	PDF147/QRCODE/DATAMATRIX
Graphic	DXF/PLT format vector image input/output
Variable Data	Serial Number, Text, Data, Time, Counter, Shift Code
Marking Area	110110, 150150, 175*175mm
Focal Distance	163mm,210mm,254mm
UI	10.1 inch Color Touch Screen, QWERTY or AZERTY Virtual Keyboard, Quick Icon Wizard Operations, Online Help, multi-Language，Support Ethernet remote PC operation and networking.
Materials	Stainless steel, Anodized alumina construction
Input/Output
Sensor	NPN / PNP /24V﹣Sensor
Speed Detection	Encoder or synchronization signal
Signal Input	Two-way input, support custom
Signal Output	Three-way output, support custom
Communication	SD card/USB 2.0/Communication interface
Facilities Condition
Power Supply	100-220V AC, 50-60Hz, 300W
Cooling System	Air cooling
Operating Environment	0-40℃,10%-90%RH，no-condensing
IP Rating	IP54
Options	Network and remote control software(TCP/IP), USD backup storage kit, support kit, fume extractor
