| Technical Specifications | DLC300 | DLC600 | |
| Applications | Cartons, flexible film, plastic bottles (PET), glass, etc. | ||
| Scanning Method | X and Y axis simultaneously | ||
| Marking Modes | Marking-on-the-fly | 150 m/min; 200 m/min (optional) | 300 m/min |
| Stationary | Intermittent motion marking | ||
| Laser Type | Standard High-Stability Series; Global Premium RF Series (optional) | ||
| Wavelengths | 10.6 μm (Standard); 9.3 μm / 10.2 μm (Optional) | ||
| Power Output | 30 W | 60 W | |
| Beam Placement | Red Diode Pointer | ||
| Marking Area / Focal Distance (mm) | 70×70/100, 110×110/150, 140×140/250, 210×210/300, 300×300/435 (optional) | 70×70/100, 110×110/150, 140×140/250, 210×210/300 | |
| Marking Speed | 8,000 mm/s; 12,000 mm/s (optional) | ||
| Controller | Embedded Linux with 10" Color Touchscreen | ||
| Character Types | Fonts | single-line, double-line, dot-matrix | |
| 1D Barcodes | Code 128, EAN-13, Code 39, Code 25 | ||
| 2D Codes | QR Code, Data Matrix, PDF417 | ||
| Graphics | DXF/PLT vector graphics | ||
| Character Size | 0.8 mm to full marking field | ||
| I/O Signals | 2 Inputs / 3 Outputs (Configurable) | ||
| Connectivity | USB 2.0, SD Slot, RS-232/Comm. Port | ||
| Cooling | High-efficiency Air Cooled | ||
| Power Supply | 100 ~ 240 VAC, 50 ~ 60 Hz | ||
| Power Consumption | 500 W | 600 W | |
| Operating Env. | 5°C ~ 40°C; 10% ~ 90% RH | ||
| Protection Class | IP54 | ||

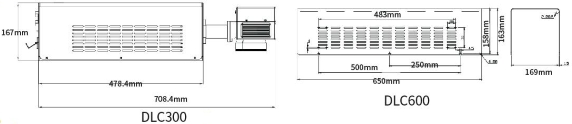

| Dimensions (L × W × H, mm) | Controller | 252 × 168 × 36 | |
| Laser Unit | 708 × 172 × 167 | 868 × 172 × 167 | |
