| Technical Specifications | DLU580 | |
| Applications | Flexible film, HDPE, LDPE, PP, metal, etc. | |
| Scanning Method | X and Y axis simultaneously | |
| Marking Modes | Marking-on-the-fly | 80 m/min |
| Stationary | Intermittent motion marking | |
| Laser Type | Standard High-Stability Series | |
| Wavelengths | 355 nm | |
| Power Output | 5 W | |
| Beam Placement | Blue Diode Pointer | |
| Marking Area / Focal Distance (mm) | 70×70/60 | |
| Marking Speed | 4,000 mm/s | |
| Controller | Embedded Linux with 10" Color Touchscreen | |
| Character Types | Fonts | Stroked/Double-Stroke/Matrix |
| 1D Barcodes | Code 128/EAN-13/Code 39/Code 25 etc. | |
| 2D Codes | QR Code/Data Matrix/PDF417 | |
| Graphics | DXF/FLT vector graphics | |
| Character Size | 0.1 mm to full marking field | |
| I/O Signals | 2 Inputs / 3 Outputs (Configurable) | |
| Connectivity | USB 2.0, SD Slot, RS-232/Comm. Port | |
| Cooling | High-efficiency Water Cooled | |
| Power Supply | 100 ~ 240 V, 10 A, 47 ~ 63 Hz | |
| Power Consumption | 600 W | |
| Operating Env. | 5°C ~ 45°C; 10% ~ 90% RH | |
| Protection Class | IP54 | |

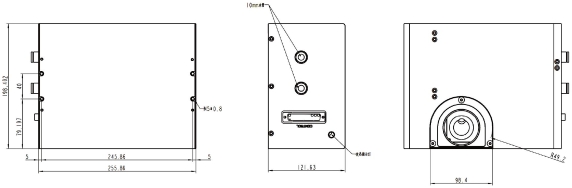

| Dimensions (L × W × H, mm) | Controller | 252 × 168 × 36 |
| Laser Unit | 255.86 × 199 × 122 | |
