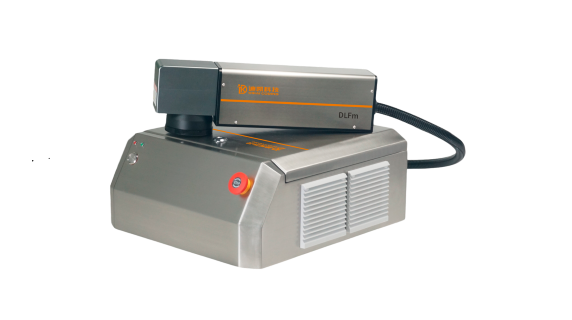

DLFm Fiber Laser Printer

DLF-M fiber laser printer adopts intelligent vector control algorithm, marking speed greatly improved. Low maintenance, no consumables, and high-quality printing features. With an optimized marking font libra, it can print permanent and high-contrast marks on flexible packaging, hard plastics (PE/PP), metals and other materials. Commonly used in food, cosmetics and other industries to ensure product traceability at the same time.

Product case

Product features

Easy Integration

Compact size, easy integration onto various packag-ing lines, and suitable for narrow installation space.

Friendly user inteace, convenient operation.

High Eciency

High Ecienc.

Can print almost allfonts,barcodes, QR codes,images and graphics; Widely used in lms, metals,plastic materials, etc.

Cost Eective

Ecient fan cooling design for low maintenance and long life.

MTBF up to 100,000 hours.

No consumables to save operation costs.

Permanent identication to protect brand and make products traceable.

High Stability

Brand-new intelligent control algorithm, ensures high quality printing.

Anti-electromagenetic inteerence design; 24 hours of continuous operation.

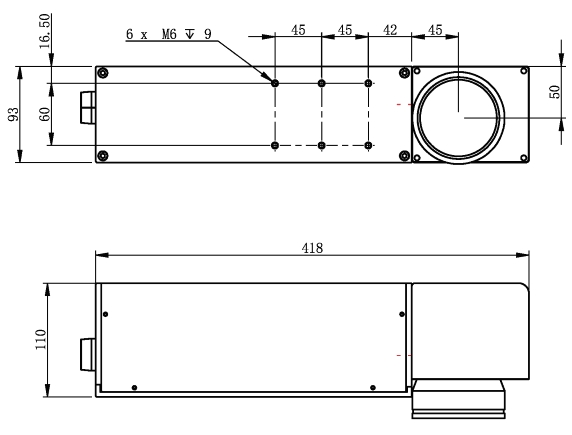

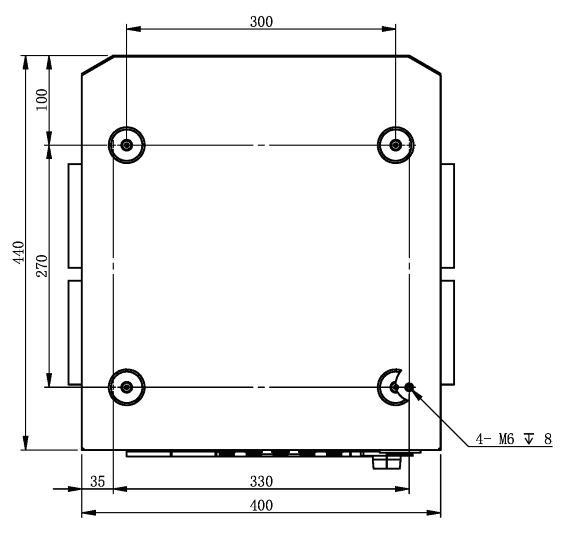

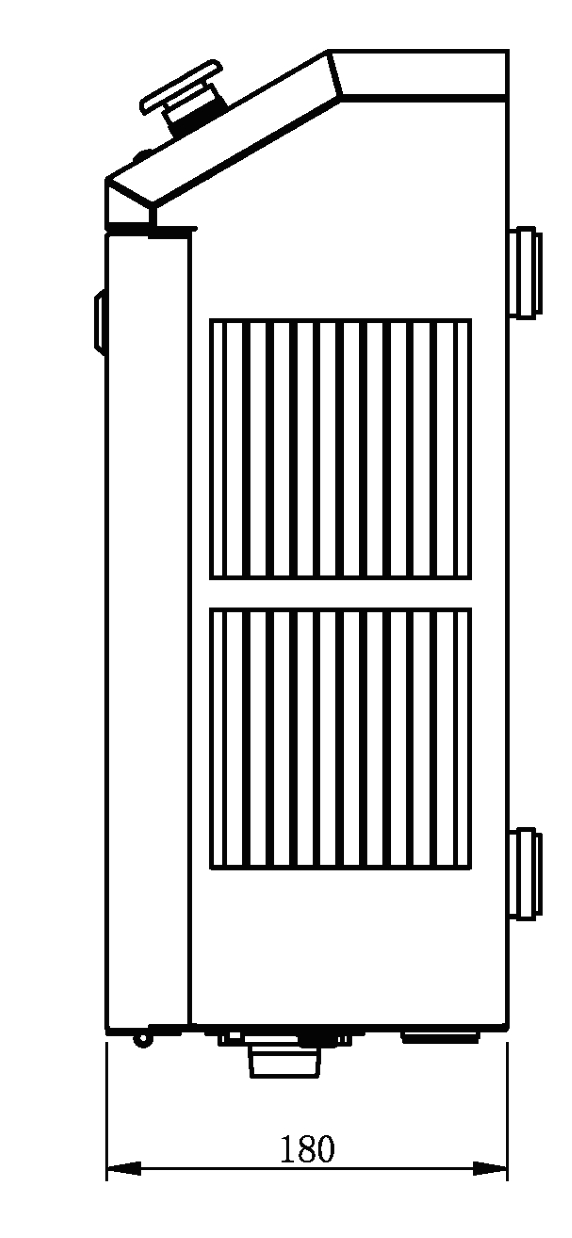

Machine dimension drawing

Product parameters

Technical Specifications		DLFm
Applications		Soft-packaging, Metal, etc.
Scanning Method		X and Y axis simultaneously
Marking Modes	Marking-on-the-fly	150 m/min, 300 m/min, 500 m/min
Marking Modes	Stationary	Intermittent motion marking
Laser Type		Standard High-Stability Series
Wavelength		1064 nm
Power Output		30 W, 60W, 100W
Marking Area / Focal Distance (mm)		110×110/200, 150×150/260, 175×175/277, 300×300/473, 400×400/587
Marking Speed		150 m/min, 300 m/min, 500 m/min
Controller		Embedded Linux with 10" Color Touchscreen
Character Types	Fonts	26 built-in fonts, supporting user-defined font types.
	1D Barcodes	Code 128/EAN-13/Code 39/Code 25 etc.
	2D Codes	QR Code/Data Matrix/PDF417
	Graphics	BMP/DXF/PLT/HPGL/JPEG
Character Size		0.8 mm to full marking field
I/O Signals		2 Inputs / 3 Outputs (Configurable)
Connectivity		USB 2.0, SD Slot, RS-232/Comm. Port
Cooling		High-efficiency Air Cooled
Power Supply		100 ~ 240 V, 10 A, 47 ~ 63 Hz
Power Consumption		300 W, 400 W, 500W
Operating Env.		-5°C ~ 45°C; 10% ~ 90% RH
Protection Class		IP54
Dimensions (L × W × H, mm)	Controller	400 × 440 × 180
Dimensions (L × W × H, mm)	Laser Unit	418 × 93 × 110
