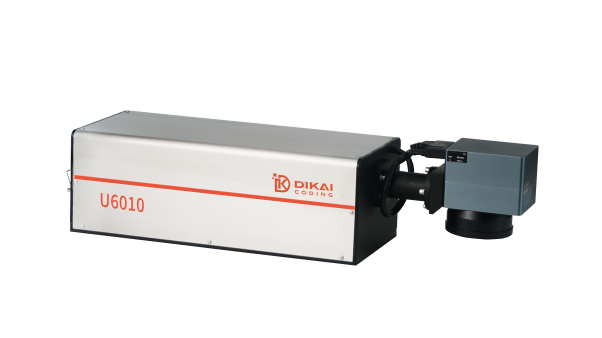

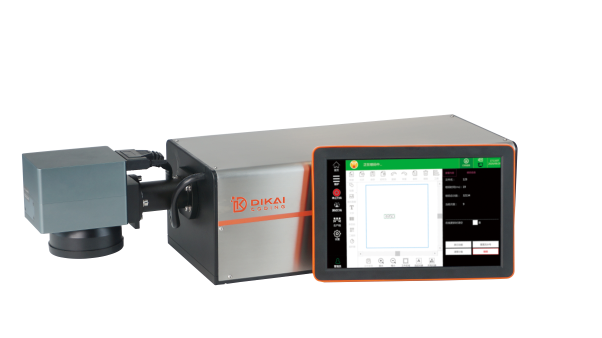

U6010/6005 UV Laser Printer

Engineered for the demands of high-speed packaging, the U6010 & U6005 delivers permanent, high-contrast marks on sensitive substrates without the cost and downtime of consumables. From food to pharmaceuticals, achieve flawless traceability with unmatched reliability.

Product case

Product features

Built to Thrive in Demanding Environments

Laser source IP65 rated design, seamlessly handles dust, and humidity, ensuring Iongevity in the harshest production zones

New intelligent control algorithm to ensure consistent marking effect under long-term operation

Support 24/7 operation to meet the needs of high-intensity production

Precision Marking for Sensitive Substrates

High-definition, permanent marks on HDPE, LDPE, and monofilm without pin-holing or thermal damage

High-speed galvanometer scanning (up to 12,000 mm/s) ensures crisp, scannable text, logos, and 2D codes (DataMatrix, QR)

Streamlined Integration, Simplified Operation

Compact integrated design, easy integration into various production lines

Support multiple installation directions and working distances

A user-friendly interface minimizes training time and operator error

Lower Total Cost of Ownership

Proprietary laser source optimization mitigates degradation, significantly extending MTBF

Built-in power self-testing and one-click optimization to prevent unplanned downtime

No consumable, supports your sustainability goals with a clean, energy-efficient marking process

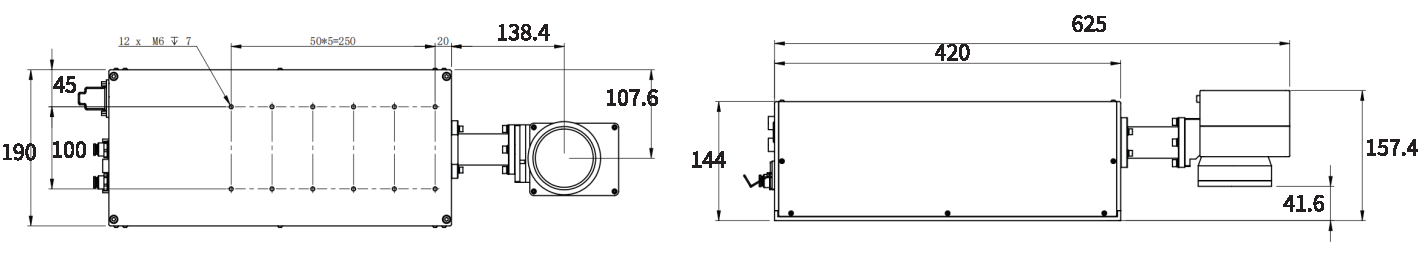

Machine dimension drawing

Product parameters

		U6005	U6010
Applicable Material		Rigid plastic material, mono film, labels, cartons, etc
Laser Source	Type	UV Laser (Nd: YVO₄)
	Wavelength	355 nm
	Power	5 W	10 W
	IP Rate	IP65
Marking Area (Working Distance) (mm)		110×110 (WD=213), 175×175 (WD=300, 250×250 (WD=430), 400×400 (WD=580)
Marking Speed (mm/s)		8,000	12,000
Content	Font	Single-line / Double-line font, Dot-matrix font
	Barcode	Code25, Code39, Code128, EAN-13, etc
	2D Code	PDF147, QR Code, Data Matrix (GS1)
	Graphics	DXF/PLT vector graphics
Marking Status		Operating, Ready, Error
I/O Signals		2 Inputs / 3 Outputs
Connectivity		USB 2.0, Ethernet
Beam Orientation		All directions

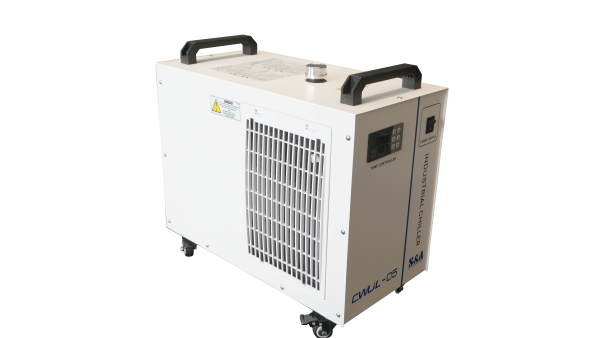

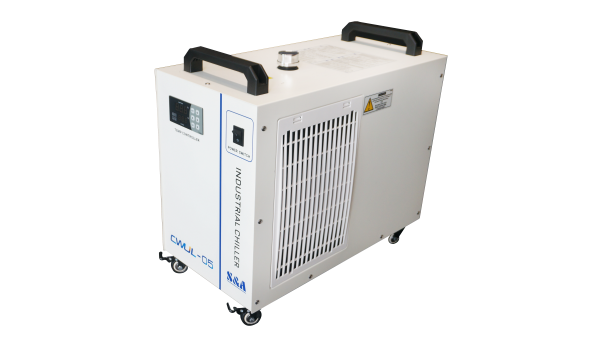

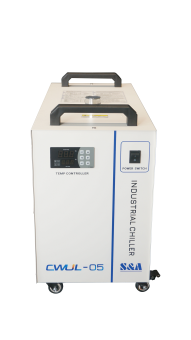

Cooling System		Water chiller
Power Supply		220 ~ 240 VAC (100 ~ 120 VAC optional), 50/60 Hz
Power Consumption		< 600 W
Operating Ambient Temperature		5°C ~ 40°C
Operating Ambient Humidity		20% ~ 80% (non-condensing)
Storage Ambient Temperature		-20°C ~ 50°C
Storage Ambient Humidity		20% ~ 80% (non-condensing)
Approx. Weight		Print Unit: 15.5kg; UI: 0.55kg; Water Chiller: 20kg
Dimensions (L × W × H, mm)	Print Unit	625 × 190 × 144
	UI	252 × 168 × 36
	Water Chiller	580 × 290 × 520
