| Technical Specifications | DLU500E | DLU1000E | |
| Applications | Flexible film, HDPE, LDPE, PP, metal, etc. | ||
| Scanning Method | X and Y axis simultaneously | ||
| Marking Modes | Marking-on-the-fly | 150 m/min | |
| Stationary | Intermittent motion marking | ||
| Laser Type | Standard High-Stability Series | ||
| Wavelengths | 355 nm | ||
| Power Output | 5 W | 10 W | |
| Beam Placement | Blue Diode Pointer | ||
| Marking Area / Focal Distance (mm) | 110×110/191, 150×150/245, 175×175/288, 220×220/373, 250×250/395 | ||
| Marking Speed | 700 CPS | ||
| Controller | Embedded Linux with 10" Color Touchscreen | ||
| Character Types | Fonts | 26 built-in fonts, supporting user-defined font types | |
| 1D Barcodes | Code 128/EAN-13/Code 39/Code 25 etc. | ||
| 2D Codes | QR Code/Data Matrix/PDF417 | ||
| Graphics | DXF/FLT vector graphics | ||
| Character Size | 0.1 mm to full marking field | ||
| I/O Signals | 2 Inputs / 3 Outputs (Configurable) | ||
| Connectivity | USB, Ethernet, RS-232 | ||
| Cooling | High-efficiency Water Cooled | ||
| Power Supply | 100 ~ 120 V, 200 ~ 240 V, 10 A, 47 ~ 63 Hz | ||
| Power Consumption | 500 W | ||
| Operating Env. | -5°C ~ 45°C; 10% ~ 95% RH | ||
| Protection Class | IP54 | ||

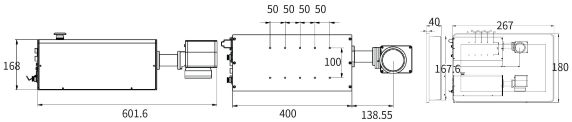

| Dimensions (L × W × H, mm) | Controller | 267 × 180 × 40 | |
| Laser Unit | 601 × 188 × 168 | ||
