Product Details

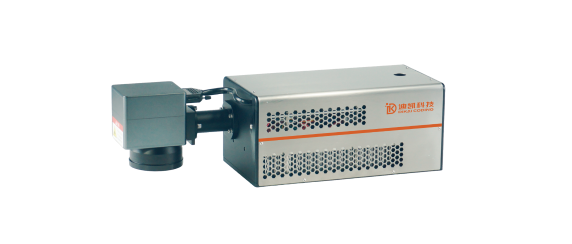

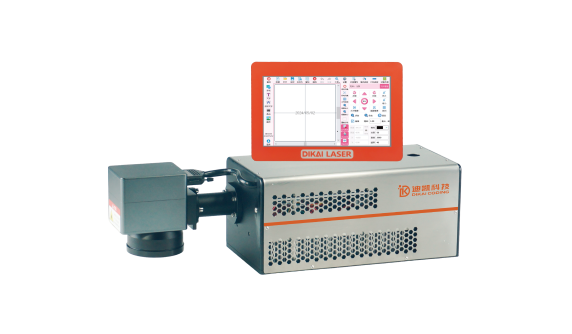

DLU500F UV Laser Printer

The unique laser control technology and air cooling technology can easily mark the best printing effect on the film, hard plastic, metal and other materials. Compact size, low maintenance, no consumable, no chiller, to provide high quality coding. It's widely used in different packaging machines. Permanent and high-contrast marking to ensure products traceability, anti-counterfeiting and anti-channelization.

Product case

Product features

High stability

New intelligent control algorithm for high quality marking effect.

Enhanced anti-electromagnetic interference design to ensure the stable running in a harsh environment.

24 hours continuous working.

Air cooling

No need for chiller and other extra equipment, easier installation and maintenance.

Use air as a cooling medium, do not use cooling water, more environmentally friendly.

Turn on time is only 1 minute, much faster than water cooling laser marking machines.

Cost effective

MTBF is more than 20000 hours.

Non-consumable, cost saving.

The power consumption is much lower than water cooling machines.

High efficiency

Faster marking speed, up to 700 pcs characters per second.

Almost unlimited font, graphics and bar code applications.

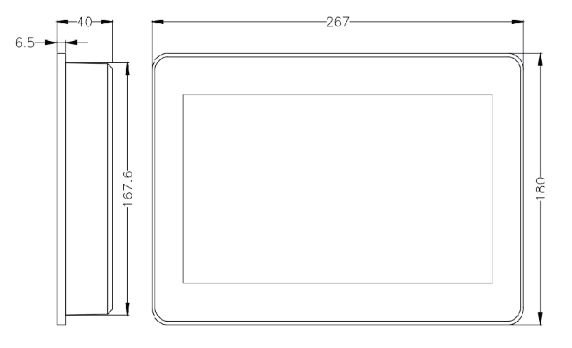

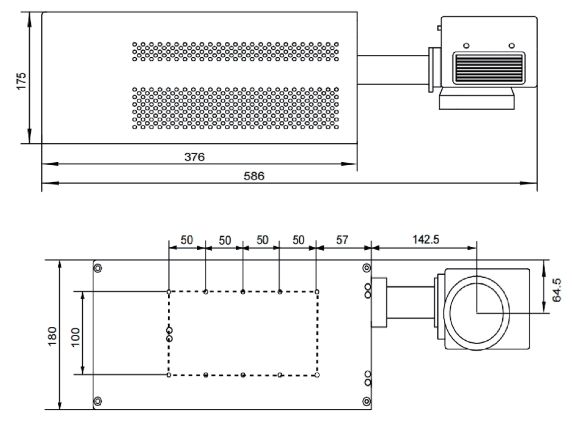

Machine dimension drawing

Product parameters

Technical Specifications		DLU500F
Applications		Flexible film, HDPE, LDPE, PP, metal, etc.
Scanning Method		X and Y axis simultaneously
Marking Modes	Marking-on-the-fly	150 m/min
Marking Modes	Stationary	Intermittent motion marking
Laser Type		Standard High-Stability Series
Wavelengths		355 nm
Power Output		5 W
Beam Placement		Blue Diode Pointer
Marking Area / Focal Distance (mm)		110×110/191, 150×150/245, 175×175/288, 220×220/373, 250×250/395
Marking Speed		700 CPS
Controller		Embedded Linux with 10" Color Touchscreen
Character Types	Fonts	26 built-in fonts, supporting user-defined font types. Supported formats: JSF, TrueType, DMF
	1D Barcodes	Code 128/EAN-13/Code 39/Code 25 etc.
	2D Codes	QR Code/Data Matrix/PDF417
	Image	BMP/DXF/PLT/HPGL/JPEG
Character Size		0.1 mm to full marking field
I/O Signals		2 Inputs / 3 Outputs (Configurable)
Connectivity		USB, Ethernet
Cooling		High-efficiency Air cooled (Air inlet ≥10 cm from obstacles)
Power Supply		100 ~ 120 V, 200 ~ 240 V, 10 A, 47 ~ 63 Hz
Power Consumption		300 W
Operating Env.		0°C ~ 40°C; 10% ~ 95% RH
Protection Class		IP54
Dimensions (L × W × H, mm)	Controller	267 × 180 × 40
Dimensions (L × W × H, mm)	Laser Unit	586 × 180 × 175
Optional Accessories		Bracket assembly, Fume extractor
