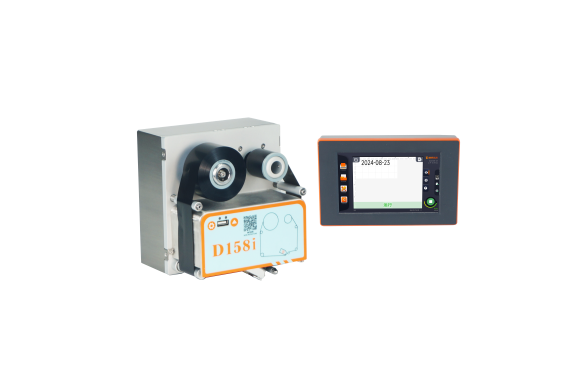

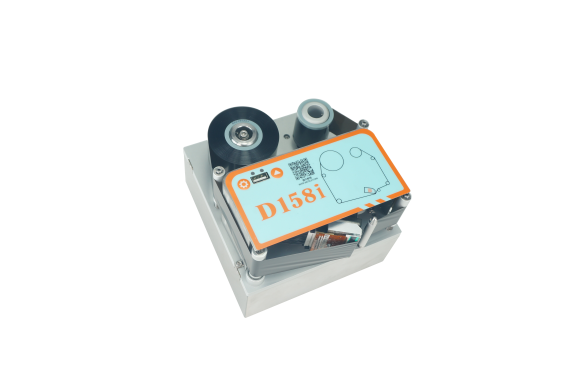

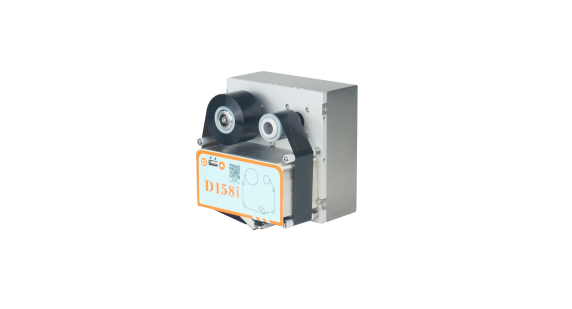

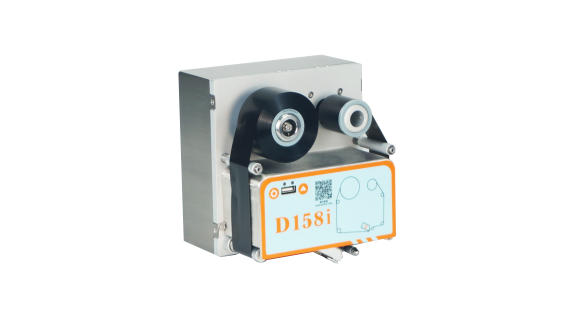

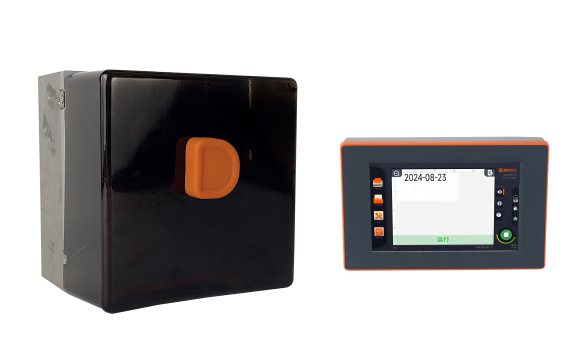

D158i Intelligent Thermal Transfer Overprinter

D158i is DIKAI's newly developed next-generation intelligent TTO printer. With an innovative patented structure and operating principle, it significantly reduces downtime and delivers up to 300 prints per minute. Compact yet powerful, it is easy to use and maintain, and can replace traditional high-speed hot-stamp coders for coding on films, labels, and more. Equipped with a 7-inch smart touchscreen, a 300 dpi high-resolution printhead, and patented control algorithms, it supports on-device editing with stable, consistent print quality. Compared with traditional hot-stamp coding, D158i produces more attractive codes and is easier to operate—providing a flexible, user-friendly solution for packaging identification.

Product case

Product features

Outstanding Performance

Minimal downtime: designed for high-speed intermittent lines; downtime as low as 40 ms per print

High-speed printing: up to 300 ppm to meet various line requirements

Patented control algorithms: paired with a 300 dpi printhead for sharper, cleaner print quality and improved product appearance

Print speed independent of content: maintains stable high-frequency printing within the allowable message length—ideal for demanding applications such as high-speed tissue machines and labeling machines

Easy Upgrade & Replacement

Power on and print: direct replacement for traditional high-speed hot-stamp coders—no preheating and no manual type changes

Compact design: small footprint for easy installation even on space-limited packaging machines

Traceability: flexible printing of real-time date/time for product traceability

Hot-swappable operation screen: one screen can be shared across multiple machines

Smart Operation

7-inch smart touchscreen: clear UI and fast response

On-device editing: edit print content directly on the machine—no PC required, easier on-site management, higher efficiency

Multi-content support: prints date, time, text, variables, and graphics; content can be edited freely within the print area

Fast file switching: stores up to 2,000 files on the screen for quick changeovers

Eco-Friendly & Efficient

Clean and safe: uses TTO ribbons—non-toxic, odor-free, no dust; suitable for environmentally controlled workshops and for food/pharma industries

Controlled consumables: adjustable character size; minimum 0.5 mm gap between prints on the ribbon to reduce costs

Long-life design: longer ribbons reduce change frequency and increase continuous uptime

Less packaging waste: TTO printing does not damage packaging materials, reducing scrap

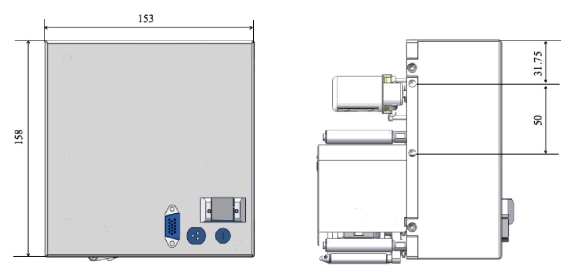

Machine dimension drawing

Product parameters

Technical Specifications		D158i
Print Mode		Intermittent
Print Head		32 mm width, 300 DPI
Print Area		32 mm × 15 mm
Print Speed		6-48 m/min
Frequency		< 300 times/min
Ribbon		33 mm × 350 m
Interface		USB, RS485
Power Supply		90-264 VAC, 2 A, 50-60 Hz
Power Consumption		48 W
Operating Env.		0-40°C; 10%-90% RH
Controller		Hot-pluggable, supports multi-unit sharing and integration into packaging machine
Weight	Controller	0.45 kg
	Print Unit	2.1 kg
Dimensions (L × W × H, mm)	Controller	210 × 135 × 36
	Print Unit	153 × 138 × 158

Consumables

Series	Grade	Features
DP	Advanced Tier TTR Wax/Resin Base	Special for Paper and Label Material
DG	Advanced Tier TTR Wax/Resin Base	Good Adhesion, Anti-Scratching, Anti-Taping
DC	Elite Tier TTR Enhanced Wax/Resin Base	Better Adhesion, Anti-Scratching, General Purpose Ribbon
DT	Premium Tier TTR Resin Base	Excellent Adhesion, High Temperature Resistance
DN	Extraordinary Tier TTR High Resistance Resin Base	Excellent Adhesion with Special Resistance – Available for High Temperature, Boiling, Low Temperature, Chemical, Etc.
