Product Details

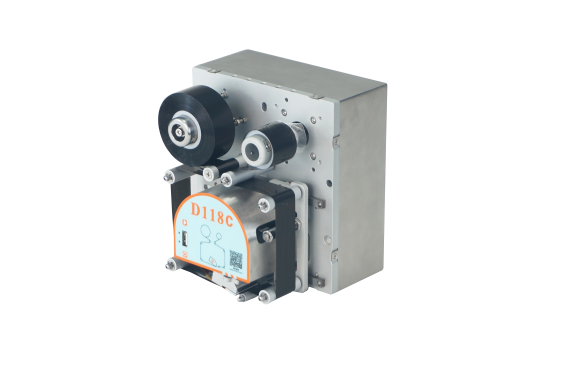

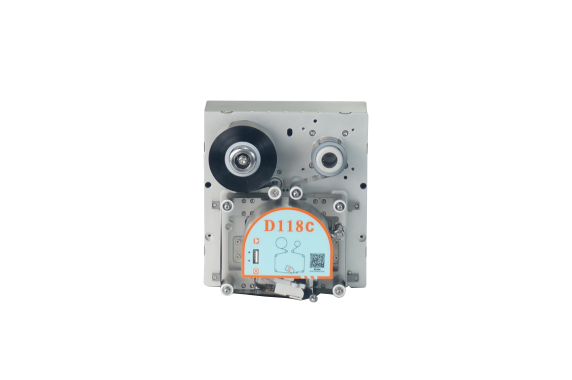

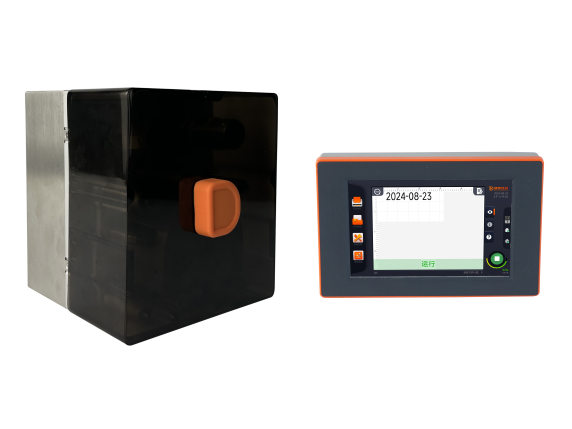

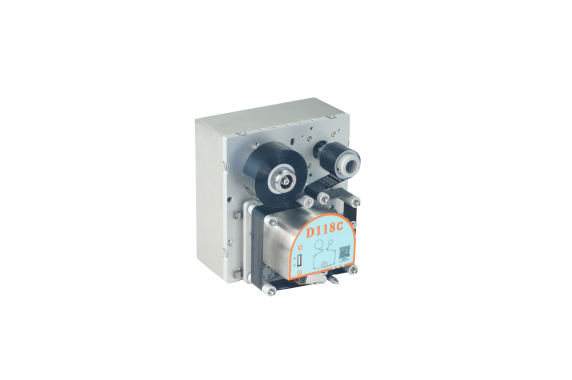

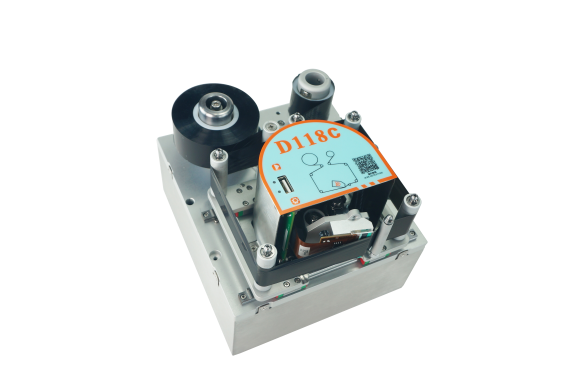

D118c Intelligent Thermal Transfer Overprinter

D118c is DIKAI's newly developed next-generation intelligent TTO printer. Featuring an innovative patented structure and operating principle, it balances performance and cost, and can replace traditional ink roller coders for coding on films, labels, and more. Equipped with a 7-inch smart screen and patented control algorithms, it supports on-device editing with stable print quality. Compared with traditional ink roller coders, D118c delivers more attractive codes and easier operation. It is compatible with multiple types of TTO ribbons, enabling markings with properties such as oil resistance, retort/boiling resistance, abrasion resistance, and freeze resistance.

Product case

Product features

Innovative Design

No air supply required: patented intermittent electric drive structure for environments without compressed air

Patented structure: no ribbon door needed; simple operation with stable print performance

Stable printing w/o ribbon break: stable operation during normal run, emergency stop, and jog to reduce downtime

Strong adhesion: with different TTO ribbon types, prints can achieve oil resistance, retort/boiling resistance, abrasion resistance, and more

Easy Upgrade & Replacement

Power on and print: direct replacement for traditional coders—no preheating and no manual type changes

Compact structure: lightweight and space-saving; easy to install on space-limited packaging machines, especially compact vertical machines

Traceability: flexible printing of real-time date/time for product traceability

Hot-swappable operation screen: one screen can be shared across multiple machines

Smart Operation

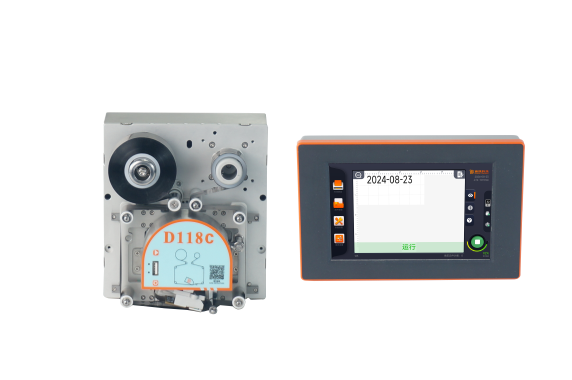

7-inch smart touchscreen: clear UI and fast response

On-device editing: edit print content directly on the machine—no PC required, easier on-site management, higher efficiency

Multi-content support: prints date, time, text, variables, and graphics; content can be edited freely within the print area

Fast file switching: stores up to 2,000 files on the screen for quick changeovers

Eco-Friendly & Efficient

Clean and safe: uses TTO ribbons—non-toxic, odor-free, no dust; ideal for environmentally controlled workshops and for food/pharma industries

Controlled consumables: adjustable character size; minimum 0.5 mm gap between prints on the ribbon to reduce costs

Long-life design: longer ribbons reduce change frequency and increase continuous uptime

Less packaging waste: TTO printing does not damage packaging materials, reducing scrap

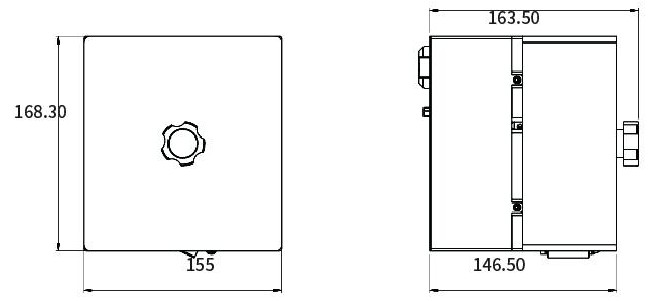

Machine dimension drawing

Product parameters

Technical Specifications		D118c_24	D118c_32
Print Mode		Continuous
Print Head		24 mm width, 200 DPI	32 mm width, 300 DPI
Print Area		24 mm × 20 mm	32 mm × 20 mm
Print Speed		1-30 m/min
Frequency		< 200 times/min
Ribbon		25 mm × 350 m	33 mm × 350 m
Interface		USB
Power Supply		90-264 VAC, 2 A, 50-60 Hz
Power Consumption		48 W
Operating Env.		0-40°C; 10%-90% RH
Controller		Hot-pluggable, supports multi-unit sharing and integration into packaging machine
Weight	Controller	0.5 kg
	Print Unit	3.15 kg
Dimensions (L × W × H, mm)	Controller	210 × 135 × 36
	Print Unit	168.3 × 155 × 146.5

Consumables

Series	Grade	Features
DP	Advanced Tier TTR Wax/Resin Base	Special for Paper and Label Material
DG	Advanced Tier TTR Wax/Resin Base	Good Adhesion, Anti-Scratching, Anti-Taping
DC	Elite Tier TTR Enhanced Wax/Resin Base	Better Adhesion, Anti-Scratching, General Purpose Ribbon
DT	Premium Tier TTR Resin Base	Excellent Adhesion, High Temperature Resistance
DN	Extraordinary Tier TTR High Resistance Resin Base	Excellent Adhesion with Special Resistance – Available for High Temperature, Boiling, Low Temperature, Chemical, Etc.
