Print Mode

Intermittent

Continuous

Print Head

53 mm width, 300 DPI

Print Area

53 mm x 70 mm

53 mm x 150 mm

Print Speed

8-20 m/min

1-40 m/min

Frequency

< 300 times/min

Ribbon

(25 mm - 55 mm) x 600 m

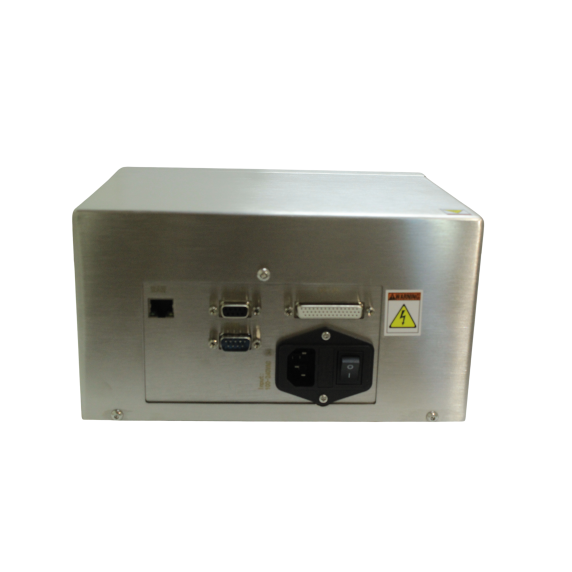

Interface

USB, Ethernet, RS232

Power Supply

AC 100-240 V, 50/60 Hz

Power Consumption

200 W

Operating Temp

0-40 ℃

Relative Humidty

10％-90％ (Non-condensing)

Air Supply

0.6 MPa (Max.), Dry, Clean

Weight

Print Unit: 9.3 kg; Controller: 2.0 kg

Dimensions
(L x W x H)

Print Unit: 210 mm x 213 mm x 180 mm;

Controller: 233 mm x 180 mm x 155 mm
