Product Details

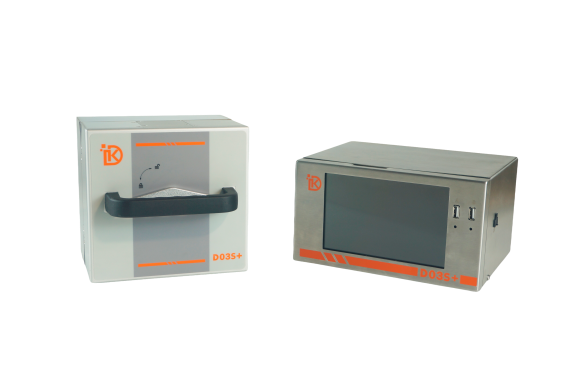

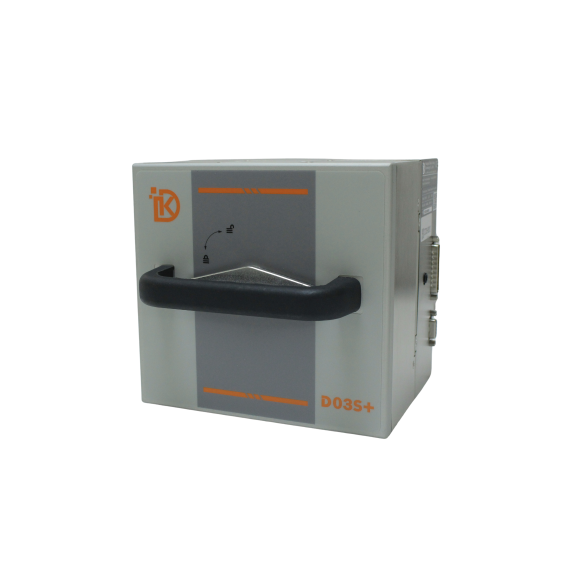

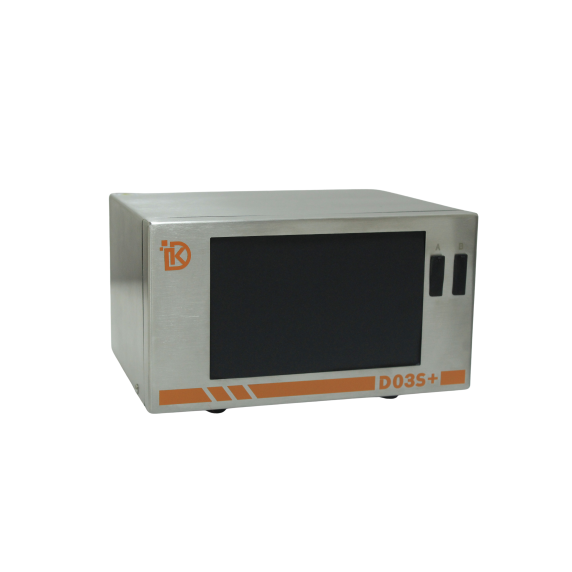

D03S+ Thermal Transfer Overprinter

Designed for message coding on flexible packaging, D Series TTO delivers high-quality printing, covering most coding and marking applications in food & beverage, pharmaceutical, cosmetics, agricultural, paper industries etc. The Plus version is upgraded to smart touch screen that supports editing printing messages directly on it. And the smart touch screen can be used on D03S/D05S for customers who demand efficient file editing.

Product case

QR Code Marking for Product Traceability & Marketing Links

Ingredient/Nutrition Panel Marking for Pre-packaged Foods

Production Date / Shelf Life / Batch Code Marking

Product features

Enhance Brand

300 dpi resolution ensures superior print quality, good contrast prints to avoid complaints and unexpected cost.

Improve Efficiency

Support real time, date and lot number printing; mes sage can be changed easily; max. 600m ribbon length reduces machine downtime; user-friendly UI and operation; intelligible message design tool.

Reduce Cost

32 mm & 53 mm print heads are able to accommodate 22~55 mm width ribbon, suitable for different applications; min. 0.5 mm print gap; multiple ribbon saving mode.

Protect Channels

Traceable barcodes, serial numbers, GS1 can be designed on the smart screen or with DIKAI ProMark software, ensuring users to trace their products, prevent counterfeit and protect distribution channels.

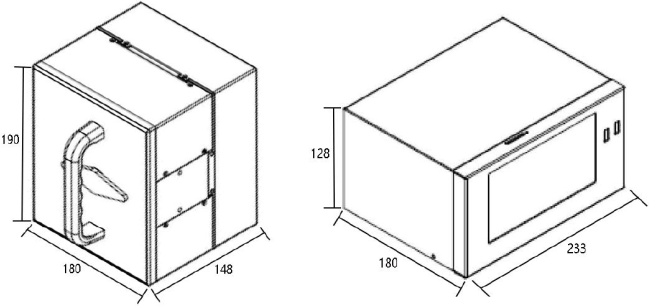

Machine dimension drawing

Product parameters

Print Mode		Intermittent	Continuous
Print Area		32 mm × 60 mm	32 mm × 150 mm
Print Speed		8-20 m/min	1-40 m/min
Print Head		32 mm width, 300 DPI
Frequency		< 300 times/min
Ribbon		(22 mm - 33 mm) × 500 m
Interface		USB, Ethernet, RS232
Power Supply		100-240 VAC, 50-60 Hz
Power Consumption		200 W
Operating Env.		0-40°C; 10%-90% RH
Air Supply		0.6 MPa (Max.), Dry, Clean
Weight	Controller	2.0 kg
	Print Unit	8.5 kg
Dimensions (L × W × H, mm)	Controller	233 × 180 × 128
	Print Unit	190 × 192 × 180

Consumables

Series	Grade	Features
DP	Advanced Tier TTR Wax/Resin Base	Special for Paper and Label Material
DG	Advanced Tier TTR Wax/Resin Base	Good Adhesion, Anti-Scratching, Anti-Taping
DC	Elite Tier TTR Enhanced Wax/Resin Base	Better Adhesion, Anti-Scratching, General Purpose Ribbon
DT	Premium Tier TTR Resin Base	Excellent Adhesion, High Temperature Resistance
DN	Extraordinary Tier TTR High Resistance Resin Base	Excellent Adhesion with Special Resistance – Available for High Temperature, Boiling, Low Temperature, Chemical, Etc.

Message form
