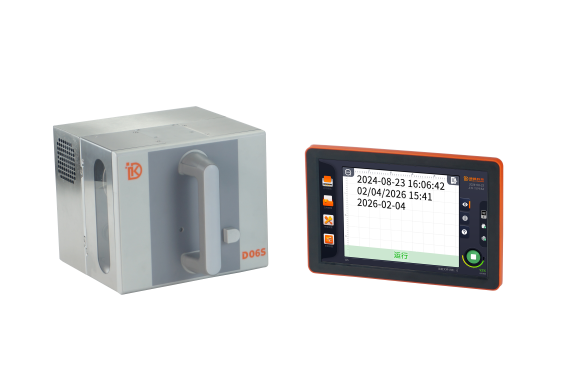

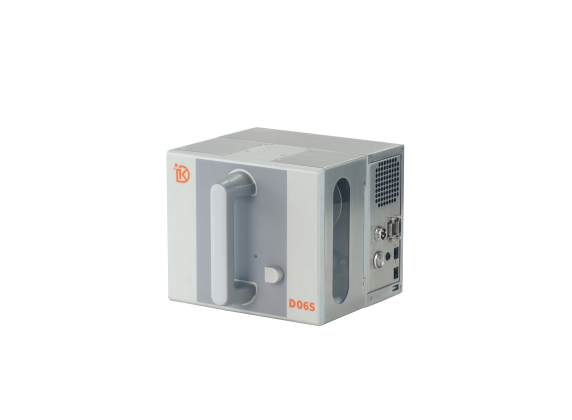

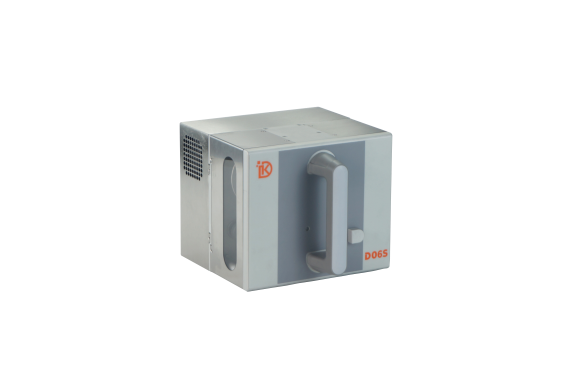

D06S Intelligent Thermal Transfer Overprinter

D06S is DIKAI's newly developed next-generation intelligent TTO printer, designed to boost productivity and withstand harsh production environments. It delivers higher print speed and throughput, fully covering flexible packaging applications. Featuring a 10.1-inch smart touchscreen with fast response, it enables online editing of all print files. The new all-in-one design simplifies operation and maintenance while improving anti-interference performance. A redesigned ribbon cassette makes ribbon replacement quicker and easier. Intelligent precision control algorithms ensure stable print position and quality while improving ribbon utilization. It also supports flexible integration with vision inspection systems, with built-in intelligent reject (NG) functionality for higher reliability. When used with the centralized control system, D06S enables remote management of multiple units, reducing errors from manual operation.

Product case

Product features

Human-Centered Industrial Design

New all-in-one design: hot-swappable screen: easy installation and simple maintenance

New ribbon door design: fast, convenient ribbon replacement

Transparent print module window: clearer view of remaining ribbon and usage

10.1-inch smart touchscreen: 1280×800 color display, clear interface, responsive operation

Innovative Technology, Performance Breakthrough

High-speed printing: up to 350 ppm; line speed 0–48 m/min, suitable for various production lines

Printhead dot inspection: Intelligent function enables on-device checking of printhead health status.

Stable printing without ribbon break: ribbon remains stable during emergency stop, jog, and normal printing to avoid downtime and improve efficiency

Intelligent reject function: flexible integration with vision systems; built-in NG reject without an additional controlle

Smart Operation, Higher Efficiency

Online file editing: edit all print files on the machine (text, date, real-time clock, images, barcodes, QR codes, etc.) without an extra PC

Fewer ribbon changes: supports ribbons up to 600 m to reduce downtime

Remote technical support: Wi‑Fi remote assistance for setup and diagnostics, fast response

Intelligent centralized control: manage multiple units via a centralized system—one-click batch start/stop, time sync, file switching, variable updates, and more

Lower Cost

Flexible consumables: supports 32 mm and 53 mm printhead widths; supports ribbons in 22/25/30/33/35/55 mm widths and multiple ribbon-saving modes to maximize consumable usage

High ribbon utilization: only 0.5 mm gap between printed contents on the ribbon; supports multiple ribbon-saving modes

Continuous software upgrades: all daily operation features are free; ongoing software updates and optimization create more value

Seamless integration with packaging machines: no external control screen required—packaging machines can embed the printer UI and control the printer directly

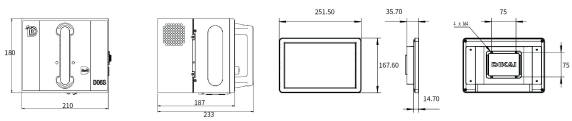

Machine dimension drawing

Product parameters

Technical Specifications		D06S_32	D06S_53
Print Mode		Intermittent & Continuous
Print Head		32 mm width, 300 DPI	53 mm width, 300 DPI
Print Area (mm)	Intermittent	32 × 75	53 × 75
	Continuous	32 × 150	53 × 150
Print Speed	Intermittent	6-30 m/min
	Continuous	1-48 m/min
Frequency		< 350 times/min	< 300 times/min
Ribbon		(25 mm - 33 mm) × 500 m	(25 mm - 55 mm) × 600 m
Interface		USB, Ethernet, RS232
Power Supply		100-240 VAC, 50-60 Hz
Power Consumption		200 W
Operating Env.		0-40°C; 10%-90% RH
Air Supply		0.6 MPa (Max.), Dry, Clean
Dimensions (L × W × H, mm)	Controller	252 × 168 × 36
	Print Unit	210 × 233 × 180

Consumables

Series	Grade	Features
DP	Advanced Tier TTR Wax/Resin Base	Special for Paper and Label Material
DG	Advanced Tier TTR Wax/Resin Base	Good Adhesion, Anti-Scratching, Anti-Taping
DC	Elite Tier TTR Enhanced Wax/Resin Base	Better Adhesion, Anti-Scratching, General Purpose Ribbon
DT	Premium Tier TTR Resin Base	Excellent Adhesion, High Temperature Resistance
DN	Extraordinary Tier TTR High Resistance Resin Base	Excellent Adhesion with Special Resistance – Available for High Temperature, Boiling, Low Temperature, Chemical, Etc.
