| Model |
DLU500i |
DLU1000i |
|||||||
|
Applications |
HDPE, LDPE, such as food, pipes, chemical products etc. |
||||||||
|
Scan Mode |
X．Y axial simultaneous scan |
||||||||
|
Marking Laser |
Laser Type |
UV Laser |
|||||||
|
Wavelength |
355nm |
||||||||
|
Output |
5W |
10W |
|||||||
| Marking Area | 70*70, 110*110, 90*90~800*800mm optional | ||||||||
| Focal Distance | 135, 218, 165~1250mm optional | ||||||||
|
Scan Speed |
≤8000mm/s |
≤12000mm/s |
|||||||
|
UI |
10.1 inch Color Touch Screen, QWERTY or AZERTY Virtual Keyboard, Quick Icon Wizard Operations, Online Help, multi-Language, Support Ethernet remote PC operation and networking. |
||||||||
|
Character Type |
Font |
Single/Double Font, Dot-matrix font |
|||||||
|
Bar Codes |
Code39/Code25/EAN-13/Code128 etc. |
||||||||
|
QR Codes |
PDF147/QRCODE/DATAMATRIX | ||||||||
|
Graphic |
DXF/PLT format vector image input/output | ||||||||
| Variable Data | Serial Number, Text, Date, Time, Counter, Shift Code | ||||||||
|
Marking Conditions |
Static mark | Multiple products can be mark simultaneously | |||||||
|
Character Size |
0.1mm-Maxium marking area |
||||||||
|
Input/Output |
Sensor/Encoder |
||||||||
|
Interface |
SD card／USB2.0／communication interface |
||||||||
|
Laser Installation Direction |
No limited |
||||||||
|
Cooling |
Water-cooling |
||||||||
|
Power & Temp |
Supply Voltage |
110-220V, 50-60Hz |
|||||||
|
Power |
600w |
||||||||
|
Storage Temp |
-10C-45℃（no freeze） |
||||||||
|
Working Temp |
10-30℃ | ||||||||
|
Environment Resistance |
Strorage Humidity |
10%-85%（no-condensing） |
|||||||
|
IP Rate |
IP54, IP65 optional | ||||||||
|
Pollution Degree |
No chemicals are produces |
||||||||
|

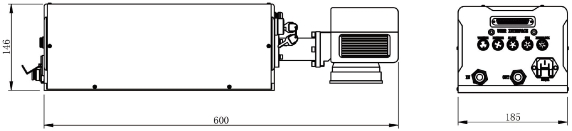

Dimension |
Weight |
UV laser printer 20.8kgs; water cooling machine 24kgs |
|||||||
|
Specification |
85cm*44cm*31cm; 65cm*36cm*56cm |
||||||||
|
Print characters per second, production line speed depends on packaging material and print content |
|||||||||
