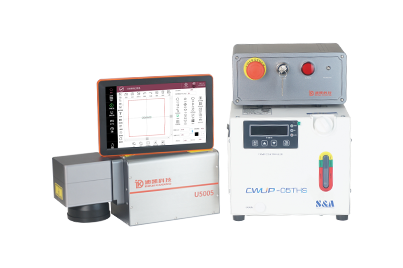

| Model | DLU520 | ||||||||||
Applications | Flexible Packaging, HDPE, LDPE, PP, Metal, etc. | ||||||||||
Scan Mode | X&Y axial simultaneous scan | ||||||||||
Marking Laser | Laser Type | UV Laser | |||||||||
Wavelength | 355nm | ||||||||||
Output | 5W | ||||||||||
| Marking Area | 70*70, 110*110mm | ||||||||||
| Focal Distance | 135, 218mm | ||||||||||
| Characters per second | 700 pcs* | ||||||||||
| The printing speed | 150 m/min* | ||||||||||
UI | 10.1 inch Color Touch Screen, QWERTY or AZERTY Virtual Keyboard, Quick Icon Wizard Operations, Online Help, multi-Language, Support Ethernet remote PC operation and networking. | ||||||||||
Character Type | Font | Single/Double Font, Dot-matrix font | |||||||||
Bar Codes | Code39/Code25/EAN-13/Code128 etc. | ||||||||||
QR Codes | PDF147/QRCODE/DATAMATRIX | ||||||||||
Graphic | DXF/PLT format vector image input/output | ||||||||||
| Variable Data | Serial Number, Text, Date, Time, Counter, Shift Code | ||||||||||
Marking Conditions | Static mark | Multiple products can be mark simultaneously | |||||||||
Character Size | 0.1mm-Maxium marking area | ||||||||||
Input/Output | Two-way input/Three-way output, can be customized | ||||||||||
Interface | SD card／USB2.0／communication interface | ||||||||||
Laser Installation Direction | No limited | ||||||||||
Cooling | Water-cooling | ||||||||||
Power & Temp | Supply Voltage | 100-240V, 10A, 47/63Hz | |||||||||
Power | 600w | ||||||||||
Storage Temp | -10C-45℃（no freeze） | ||||||||||
Working Temp | 5-45℃ | ||||||||||
Environment Resistance | Strorage Humidity | 10%-90%（no-condensing） | |||||||||
IP Rate | IP54 | ||||||||||
Pollution Degree | No chemicals are produces | ||||||||||
Dimension | Weight | Laser head 10.0kg, user interface 1.7kg | |||||||||

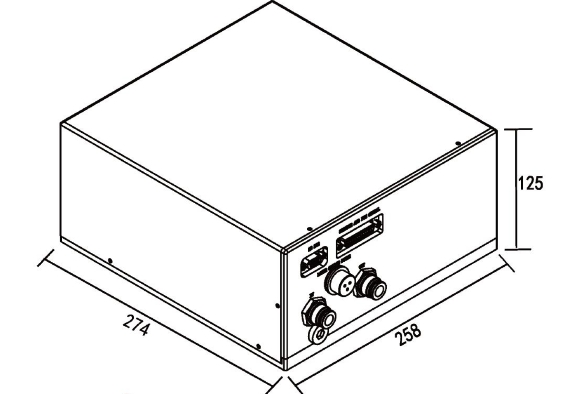

Specification | Laser head:274×258×125mm;User Interface:305×207×56mm;Chiller:345×249×560mm | ||||||||||
| * The number of characters per second and the speed of the production line depends on the printing material and content * | |||||||||||
